Description

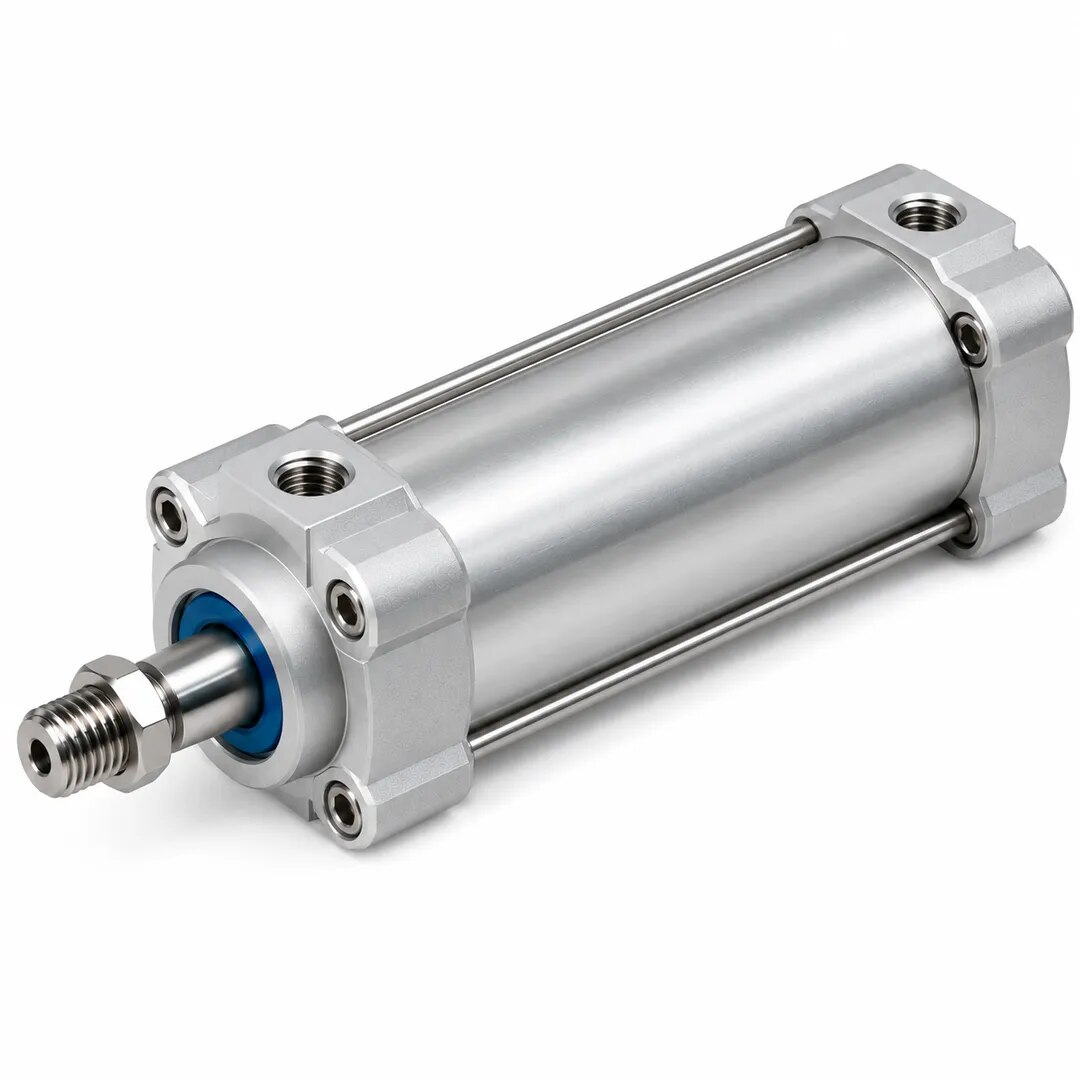

Product Name: Round Pneumatic Cylinder
Brand: FESTO
Series: DSNU
Model: DSNU-40-80-PPV-A
Bore: 40 mm
Stroke: 80 mm
Type: Double-Acting
Cushioning: Adjustable pneumatic cushioning at both ends
Operating Pressure: 1–10 bar
Connection: G1/4
Piston Rod Thread: M12 × 1.25
Part No.: 196033
Description:
FESTO DSNU-40-80-PPV-A is a standard round pneumatic cylinder designed for reliable linear motion in industrial automation, assembly machinery and material-handling applications. Its adjustable end-position cushioning provides smooth cylinder movement and reduced impact at the stroke ends.
Specifications
| SERIES | DSNU |
|---|---|
| MODEL | DSNU-40-80-PPV-A |
| BORE | 40MM |
| STROKE | 80 MM |
| TYPE | DOUBLE ACTING |
| Piston Rod Thread | M12 × 1.25 |
